Powermatic PM2820EVS Drill Press

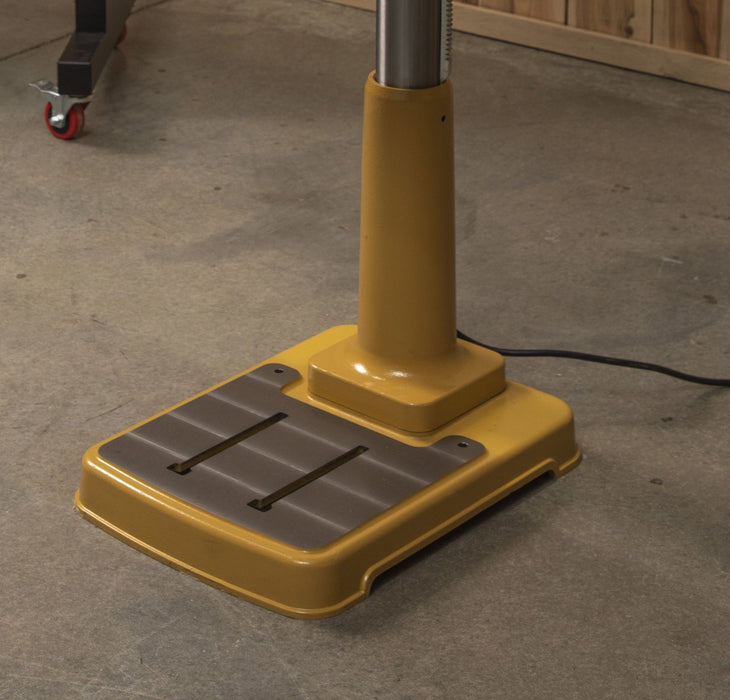

Gear up for the Ultimate Performance with the Powermatic PM2820EVS Drill Press.The gear driven power transfers torque consistently and efficiently for any project in a wide range of materials. A removable cast table with 45 degree rotation has capacity for projects large and small. The high visibility laser pinpoints the drilling location for total accuracy.Included fence and stop help make repeat and production drilling efficient. Handles can be moved to right or left for ease of use. Oversized cast base give this drill press stability.Integrated LED light reduces shadows for project visibility.
| Stock Number | 1792820 |
|---|---|
| Base Dimensions (In.) | 22.7 x 16.33 x 2.75 |
| Base Size (In.) | 22-3/4 x 16-3/8 x 2-3/4 |
| Base Work Table (In.) | 11.81 x 12.05 |
| Chuck Distance to Base (In.) | 41-1/4 |
| Chuck Distance to Table (In.) | 19-1/4 |
| Chuck Size (In.) | 5/8 |
| Column Diameter (In.) | 3-3/8 |
| Fence Size (L x H) (In.) | 19-3/4 x 2-5/8 |
| Gross Weight (Lbs) | 413.6 |
| Motor Amps | 8 |
| Motor (HP) | 1 |
| Motor Power (HP) | 1 |
| Motor Voltage (V.) | 120 |
| Net Weight (Lbs.) | 336.6 |
| Number of Spindle Speeds | 2 Variable |
| Overall Dimensions (L x W x H) (In.) | 24.5 x 20.5 x 71.85 |
| Prewired Voltage (V.) | 115 |
| Prop 65 | Cancer and Reproductive Harm |
| Quill Diameter (In.) | 2.6 |
| Spindle Distance to Base (In.) | 45 |
| Spindle Distance to Table (Max.) (In.) | 23 |
| Spindle Speed (RPM) | 150 - 3600 |
| Spindle Taper | MT2 |
| Spindle Travel (In.) | 6 |
| Style (Type) | Floor |
| Swing (In.) | 20 |
| Table Size Fully Extended (L x W) (In.) | 20-1/2 x 15-1/2 |
| Table Size (L x W) (In.) | 20-1/2 x 15-1/2 |
| Table Tilt (Deg.) | 90 L/R |
| Weight (Lbs.) | 336.6 |
Delivery time
Due to market conditions this item is available for order but not currently in stock. We will provide you with tracking info as soon as we have more information. If you would like specifics please reach out to us directly.
