Powermatic 4224B Lathe, 3HP 1/3PH 220V
by Powermatic
SKU PM9-1794224K
Save 19%
Original price
$10,934.27
Original price
$10,934.27
-
Original price
$10,934.27
Original price
$10,934.27
Current price
$8,899.99
$8,899.99
-
$8,899.99
Current price
$8,899.99
The Powermatic 4224B is the newest member of the industry-leading family of lathes. Over 900 pounds, the 4224B is the biggest, heaviest, and most capable lathe we’ve ever built. It expands the limits of creative possibility, and takes your passion to a whole new level. With newly designed, top of its class features, the 4224B pushes the limits of design, innovation, and durability.
15 Amp quad receptacle for easy reach of powered accessories
Variable frequency drive allows machine to run on single- or three-phase power
Air nozzle with quick connect for clearing dust/chips

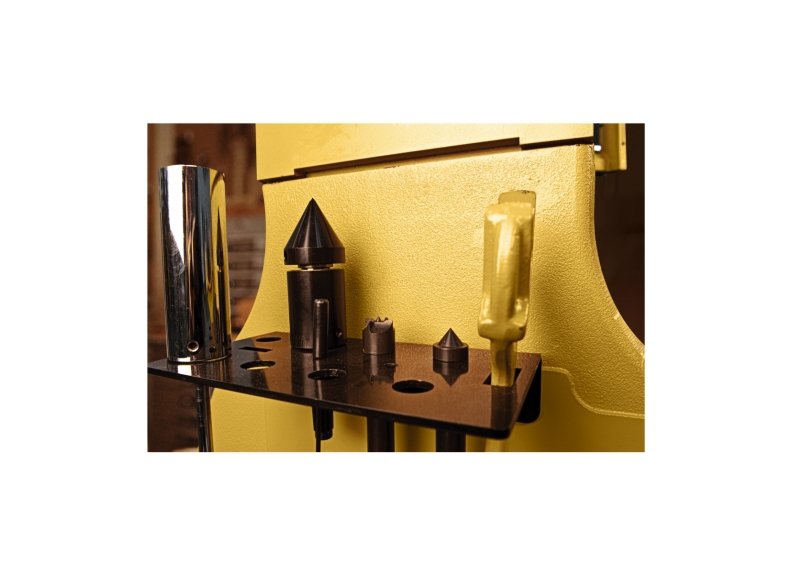

Brass-tipped knockout bar concentrates the action in the sliding handle; the brass tip will not damage drive centers

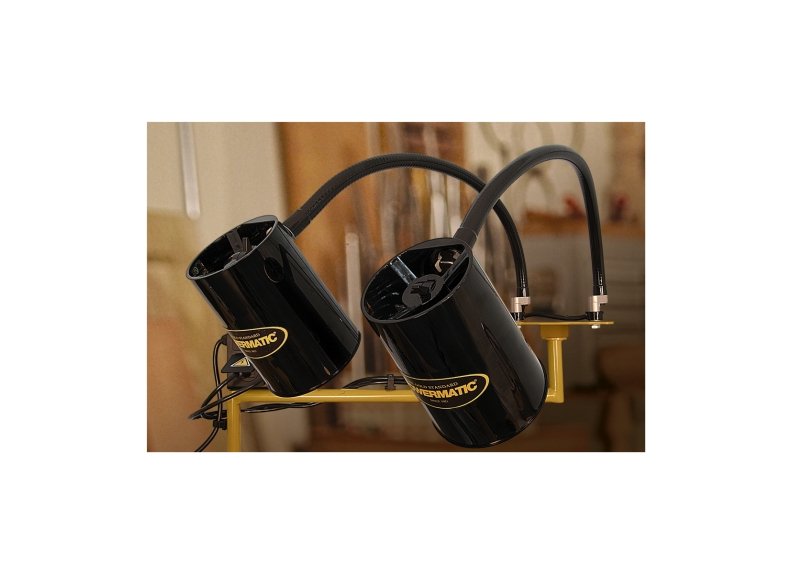

Includes two 100W task lamps to provide ideal lighting and safety guard.
Magnetic-backed moveable control box for versatility and safety
Set of dead centers which hold a spindle for visual comparison
Sliding headstock with electronic variable speed
Spindle lock and built in spindle indexing on the headstock for drilling hole patterns, routing flutes and other equally spaced features
Vacuum system provides quick method of chucking bowl blanks
Specifications
| Stock Number | 1794224K |
|---|---|
| Bed Construction | Cast Iron |
| Centerline of Spindle to Floor (In.) | 44 |
| Distance Between Centers (In.) | 42 |
| Gross Weight (Lbs) | 945 |
| Input Power | 220V 1-Phase |
| Motor Amps | 10 |
| Motor (HP) | 3 HP, 220V, 3Ph |
| Motor Power (HP) | 3 |
| Motor Voltage (V.) | 220 |
| Net Weight (Lbs.) | 870 |
| Overall Dimensions (L x W x H) (In.) | 89 x 28 x 65 |
| Prop 65 | Cancer and Reproductive Harm |
| Recommended Circuit Size (Amps.) | 30 |
| Shipping Dimensions (L x W x H) (In.) | 68 x 27 x 31.5 |
| Swing Over Bed (In.) | 24 |
| Weight (Lbs.) | 870 |
Delivery time
Due to market conditions this item is availble for order but not curretly in stock. We will provide you with tracking info as soon as we have more information. If you would like specifics please reach out to us directly.
