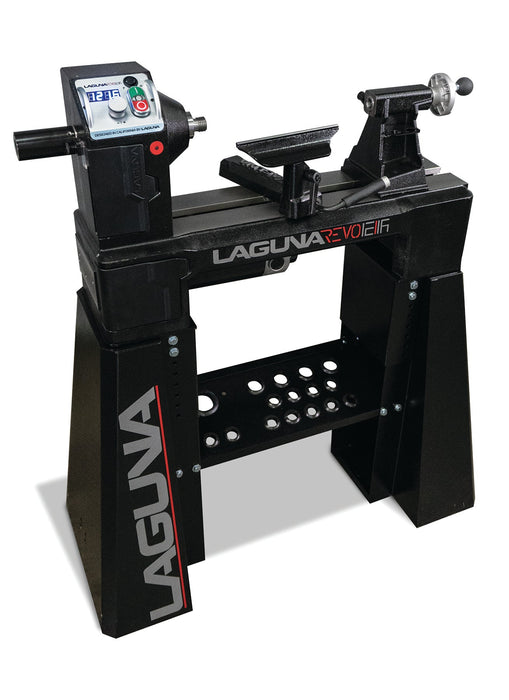

LAGUNA REVO 12|16

$999.99
Shipping calculated at checkout.
  • Vendor: LAGUNA
  • Product Type: Tool
  • Barcode: 195444074943
DESCRIPTION

Not in stock. Ships direct from Laguna. Send us an email to coordinate.


The definitive midi-lathe, Laguna’s REVO 12|16 encapsulates the prestige of Laguna in a small package. Featuring a Pulse Width Modulation system motor to maintain consistent torque at any speed, one step cam-action belt change with magnetic door housing, and a luxury banjo w/45º chamfered edge. The 1216 controls the 1hp DC motor using pulse width modulation. A big problem with DC motor control is torque at low speeds, and you will find many MIDI lathes with the lowest speed of 250RPM and higher because of this. This is because the cost effect controllers introduce resistance into the voltage to limit the power, which reduces the speed but also reduces the torque at the same rate. PWM will deliver full torque across the entire speed range. This allows for tremendous torque at low speeds which is helpful when roughing and precision work. This also allows for outboard turning up to a 16” bowl on a mid-sized lathe.


STANDARD FEATURES
24 Positions Index System with Lock & Transparent Window
Electronic Variable Speed & RPM Digital Read Out (DRO)
Pulse Width Modulation (PWM) Motor Control
Hardened 1045 Steel Tool Rest Leading Edge
Luxury Banjo with 45° Chamfered Edge
Live & Drive Center On-Board Storage
Forward & Reverse Spindle Rotation
1" REVO Compatible Tool Rest Post
ACME Lead Screw in Tailstock
Drive Center Knock-out Rod
Live Center & Drive Center
Oversized Handle Stops
Solid 3-1/2" Metal Brake
Magnetic Door Latches
Tool-less Belt Change
Faceplate Wrench
3" Faceplate

    • Motor: 1 HP DC Permanent Magnet Motor
    • Controller: Pulse Width Modulation (PWM)
    • Electrical Requirements: 110V-1PH-60HZ
    • Recommended Breaker Size: 110V - 15 AMP
    • Speed Range High 650 - 3500 RPM
    • Speed Range Mid 325 - 1750 RPM
    • Speed Range Low 50 - 525 RPM
    • Distance Between Centers 15.5”
    • Swing Over Bed 12-1/2”
    • Swing Over Banjo 9-1/2”
    • Max. Outboard Swing 16”
    • Spindle Bore 3/8”
    • Spindle Taper MT2
    • Spindle Thread 1”x 8 TPI (both ends)
    • Front Bearing 6006LLU
    • Rear Bearing 6005LLU
    • Indexing 24 positions w/ Lock
    • Drive belt Poly-V Belt 6 Grooves
    • Tail stock quill travel 2-1/2”
    • Tail stock taper MT2
    • Bed Length 29.4”
    • Tool Rest Length 6”
    • Tool Rest Post Dia. 1”
    • Faceplate Dia. 3”

Accepts vacuum chuck: No

  • Certification CSA C/US 256540
  • Floor to bed height 6.7” no pads
  • Floor to Spindle Center 13” no pads
  • Overall Size L29.4” W8.9” H17.4”
  • Shipping Dimensions L35.8” W14.6” H20.5”
  • Net Weight 118 LBS
  • Shipping Weight 125 LBS
