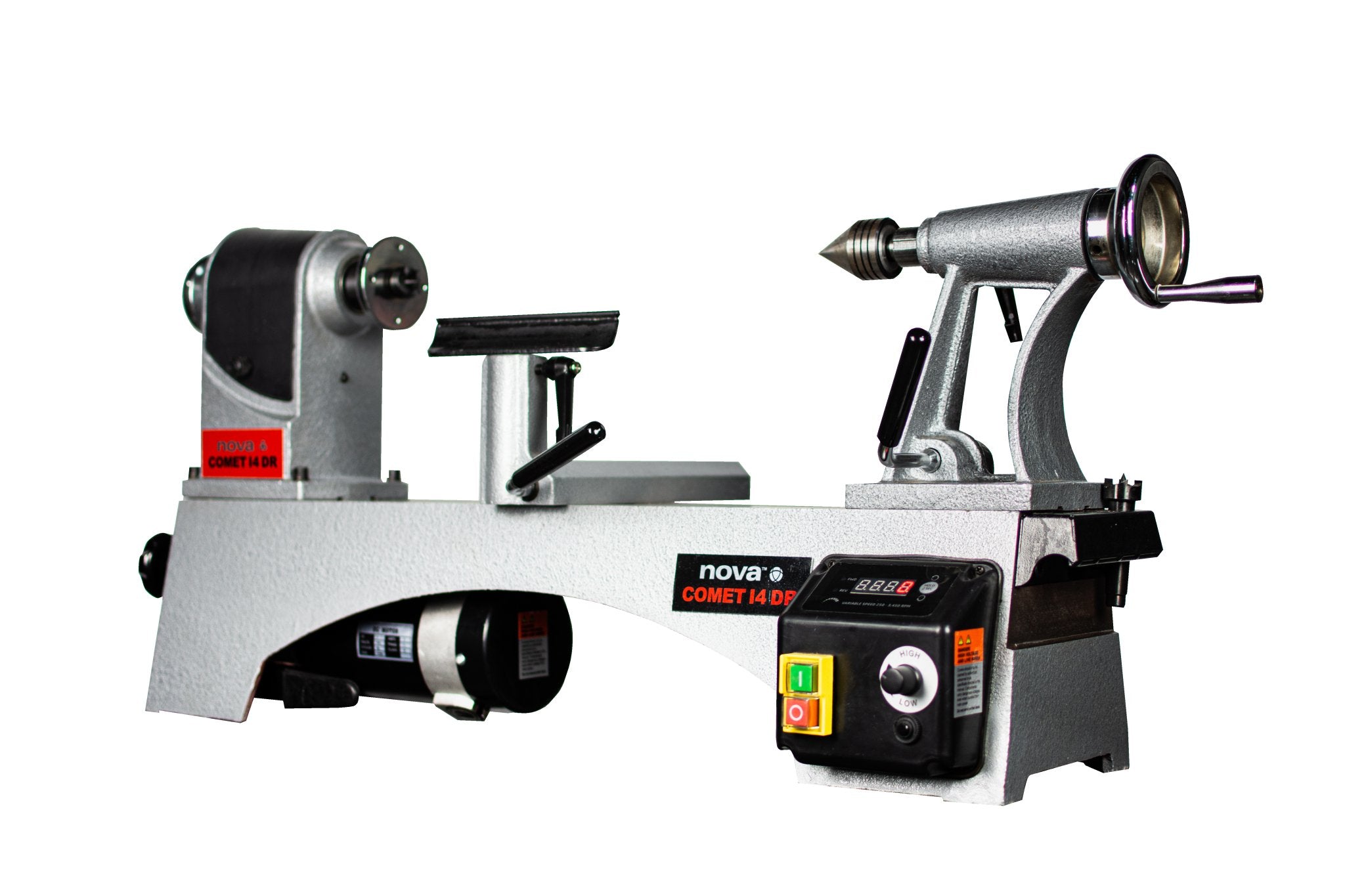

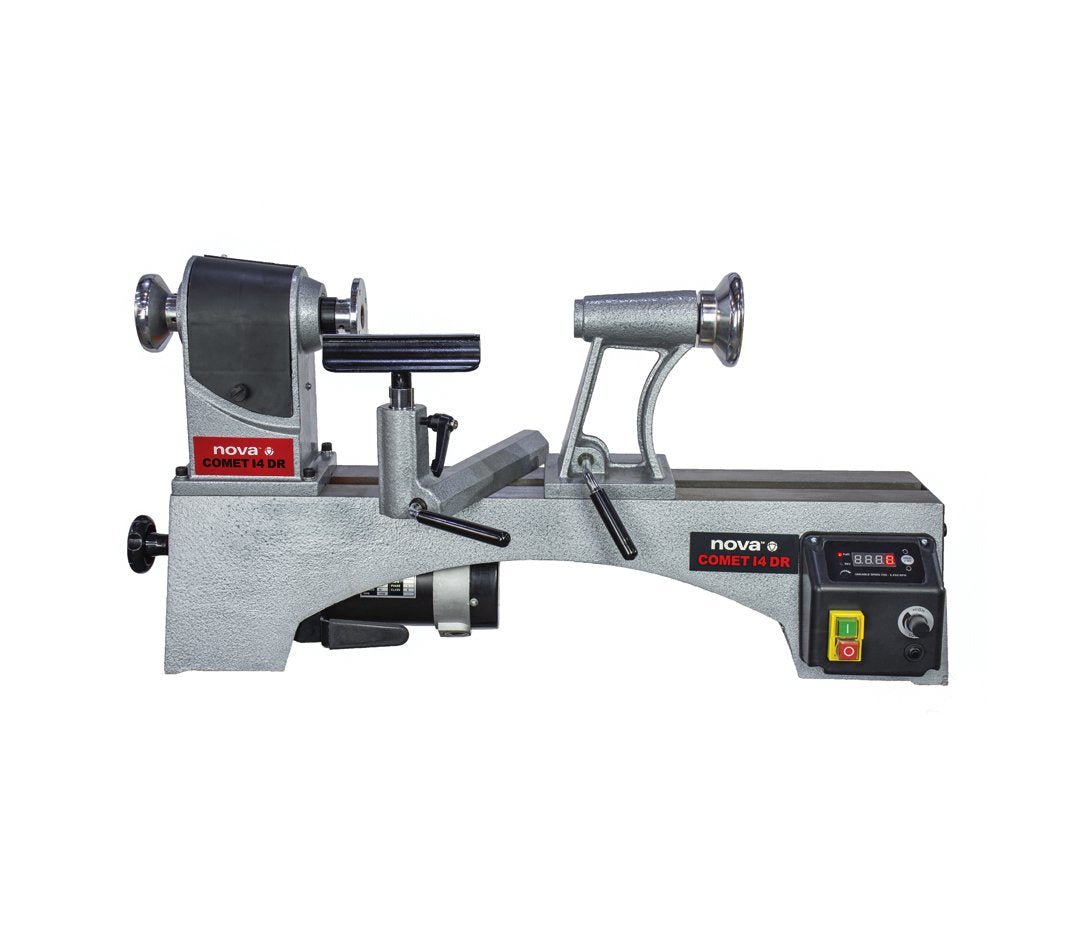

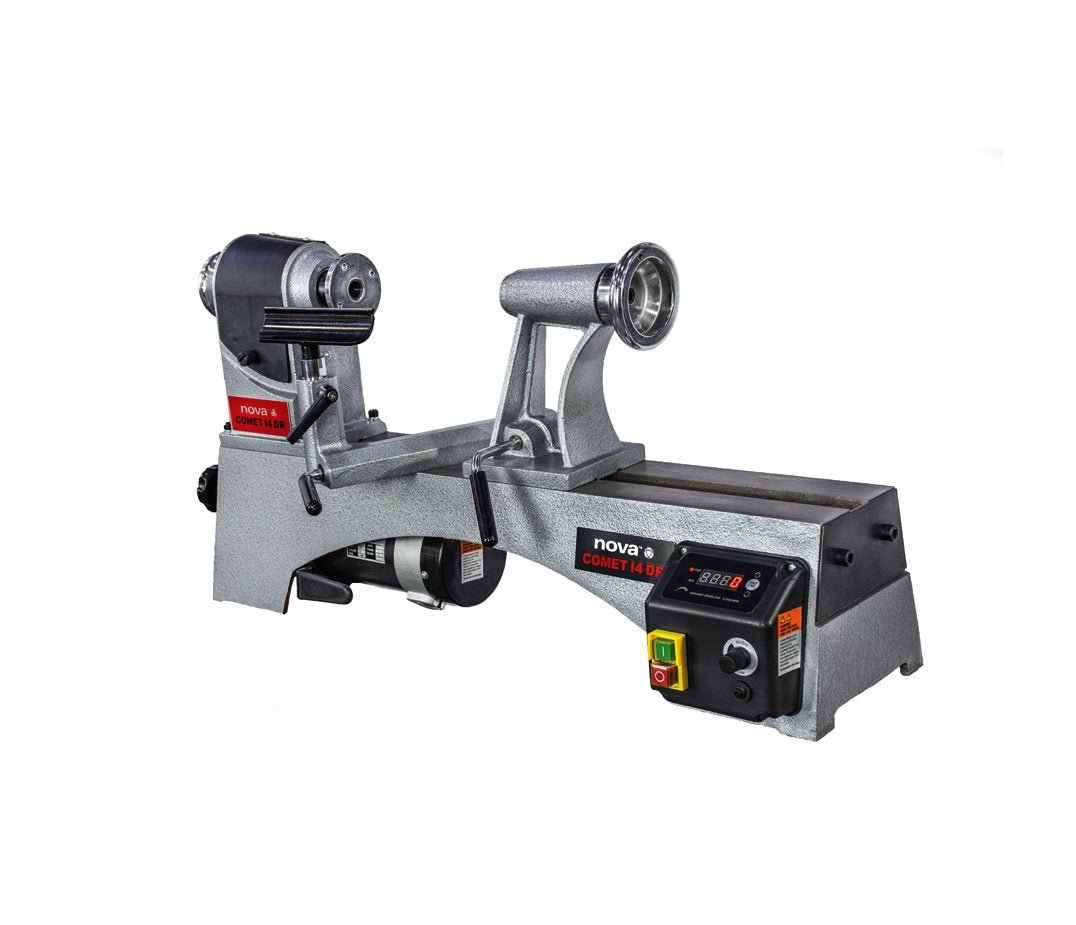

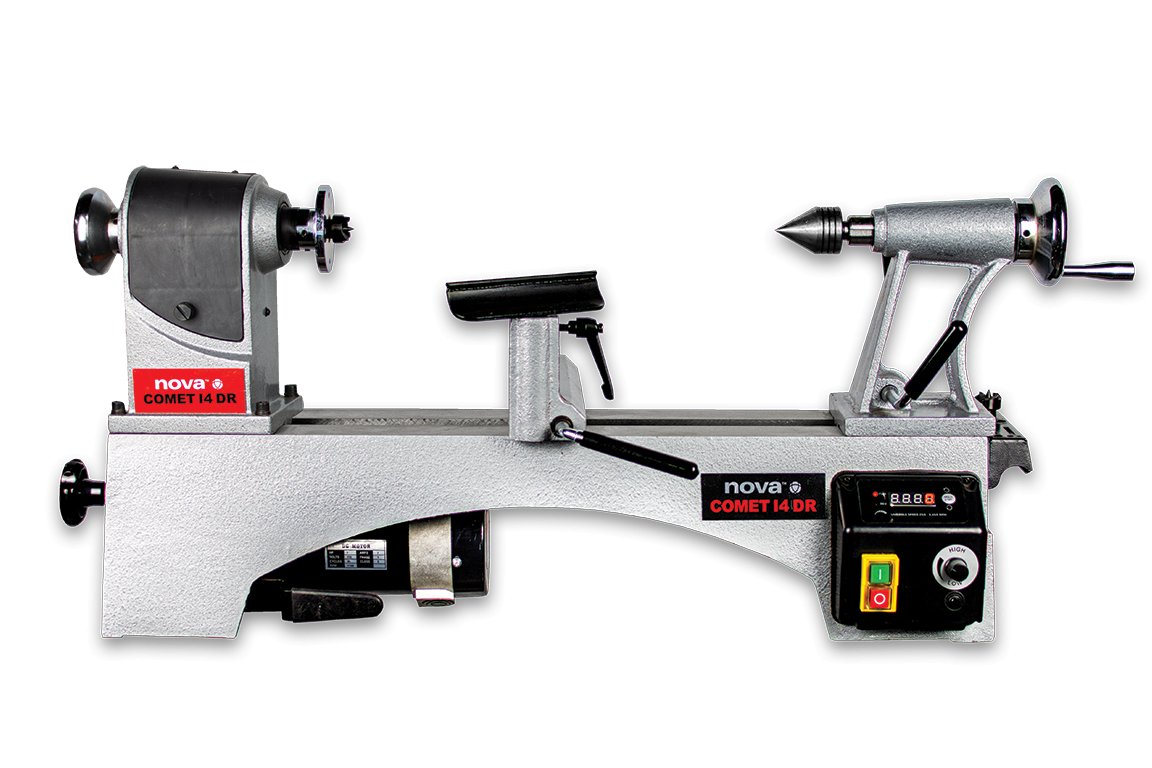

Nova Comet 14 DR Midi Lathe

The NOVA Comet 14 DR continues the legacy of the Comet Midi Lathe with expanded capacity and digital functionality. Solid cast iron lathe with Digital Readout and a 14” Swing Capacity. The NOVA Comet 14 DR is the perfect solution for a wide variety of projects from small pens to larger bowls and platters.

SPECIFICATIONS

	14″ SWING 18.5″ BETWEEN CENTERS	Swing over bed – 14″/355mm Distance between Centers – 18.5″/469mm (Extendable with optional Bed Extension Accessory SKU 46901)
	VERSATILE SPEED RANGE	2-step Electronic Variable Speed range. Low range: slower speeds from 250 RPM up to 1,100 RPM for larger spindle and bowl work. Fast range: from 750 RPM up to 3,450 RPM for miniature turning work.
	FORWARD AND REVERSE	Quickly and easily change direction between forward and reverse. This offers you additional flexibility and allows you to achieve a superior finish, reducing the need for extensive sanding.
	EASY KNOB CONTROL	Quickly dial-in the correct speed for the job, material and conditions. You’re not limited to fixed-speed steps that are potentially dangerous.
	EXTENDABLE BEDS	Flexible capacity to match your project. – 14″/355mm Capacity Over Bed – 18.5”/469mm Between Centers standard – 44”/1,120mm Between Centers with one extra accessory bed extension (Additional purchase SKU 46901. Each bed extension is 25.6”/650 mm in length.)
	SOLID CAST IRON ANTI-VIBRATION	CAD designed webbing to absorb vibration throughout the bed length. Exceptional structural strength, precision machined for superior fit and finish
	ACCESSORIES	Large Range of NOVA Accessories NOVA Chucks and Jaws, Faceplates, Chisels, Centers all enhance your use of the NOVA Comet 14 DR Midi Lathe. Comet Stand 47050 compatible Comet 14 DR 46900.
	SPECIFICATIONS	Swing over bed – 14”/355mm Strong 2MT Spindles Distance between Centers – 18.5”/ 469mm (extendable with optional Bed Extension Accessory SKU 46901) Quick Action Cam Controls – With comfortable rubber grip for fast and secure locking Spindle Speeds – Electronic Variable Spindle Speed Range – Low range: slower speeds from 250 RPM up to 1,100 RPM for larger spindle and bowl work. Fast range: from 750 RPM up to 3,450 RPM for miniature turning work. Spindle Thread – 1” x 8TPI Motor – 1HP, 120V, Single Phase, 60Hz Shipping info: 93lbs/42kgs Footprint: 32-3/8″/821mm x8.5″/215mm

WARRANTY
* 2 Year Warranty on Parts and Components
* 1 Year Warranty on Motor and Electronics
* Restrictions apply

STANDARD EQUIPMENT

• Faceplate (3”/80mm)
• NOVA Modular Toolrest (9095 and 9027)
• NOVA 2MT Live Center
• NOVA 2MT Spur Center
• Knock Out Bar
• Manual & Fastenings

MANUALS

Comet 14 DR Manual

Teknatool Distributor Store Guide for Comet 14
